Tesla Model S Raven with HW3#

The Model S Raven with HW3 is a special case. Like HW2, it requires a dual CAN interceptor box to access both the Chassis CAN bus (steering) and Powertrain CAN bus (acceleration/braking). This is different from the Model 3/Y with HW3, which uses a standard comma harness.

The harness connects to two connectors on the autopilot computer.

Quick Start#

  1. Get the Tesla Model S Raven (HW3) - Harness — includes the dual CAN interceptor box and all cables
  2. Get a comma four (or comma 3X)
  3. Connect your comma device to the harness (see wiring instructions below)
  4. Install the xnor fork of openpilot
  5. Take your Tesla for a test drive with openpilot!
  6. If you see “Car Unrecognized”, fingerprint your car

Supported Devices#

  • comma four or comma 3X — recommended
  • comma three (deprecated)

See Installing openpilot for the correct version for your device. For details on comma hardware, see the comma hardware repository.

Harness Install Location#

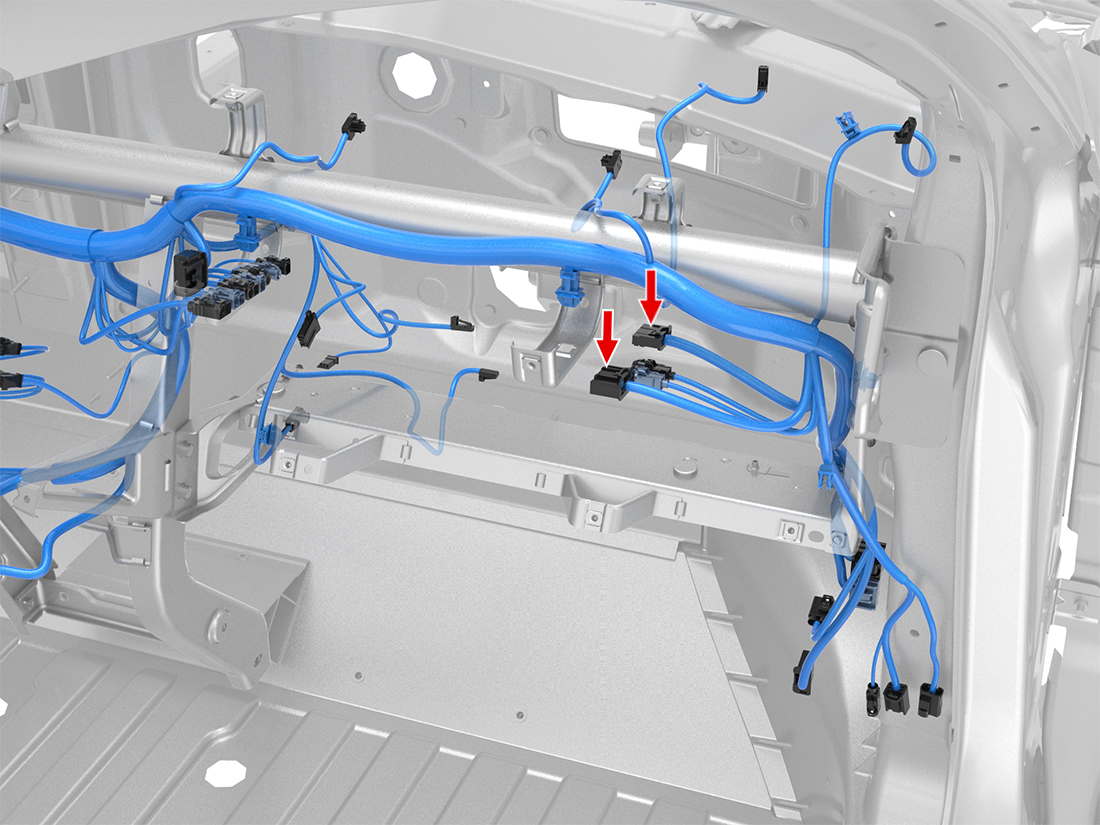

The harness installs at the autopilot computer behind the glovebox and connects to two connectors:

Model S Raven HW3 connectors

Wiring#

The dual CAN interceptor box has two ports. Both must be connected to your comma device:

Dual Panda Instructions

1. Connect OBD-C (Port 1)#

Connect one end of the OBD-C cable to Port 1 on the dual CAN interceptor box. Connect the other end to the OBD-C port on your comma device.

Depending on your vehicle model, you may need an OBD-C extension cable. If so, connect the included extension cable to the OBD-C cable that came with your comma device to increase its length.

2. Connect USB-C (Port 2)#

Connect one end of the USB-C 2.0 cable to Port 2 (auxiliary port) on your comma device. Connect the other end to the corresponding Port 2 on the dual CAN interceptor box.
